Gateway | Flash | ARTNET/DMX 8×512 ch

Flash ARTNET/DMX GATEWAY 8x512 ch
Flash ARTNET/DMX GATEWAY 8x512 ch
Flash ARTNET/DMX GATEWAY 8x512 ch
Flash ARTNET/DMX GATEWAY 8x512 ch
Flash ARTNET/DMX GATEWAY 8x512 ch
Flash ARTNET/DMX GATEWAY 8x512 ch

Gateway | Flash | ARTNET/DMX 8×512 ch

2.223,11 kr. Inkl. moms

Bestillingsvare
Ca. 7-14 dage
Z

Dansk Webshop

Z

14 dages fuld returret

Z

Nem betaling

Z

Professionel rådgivning

Mange betalingsmuligheder

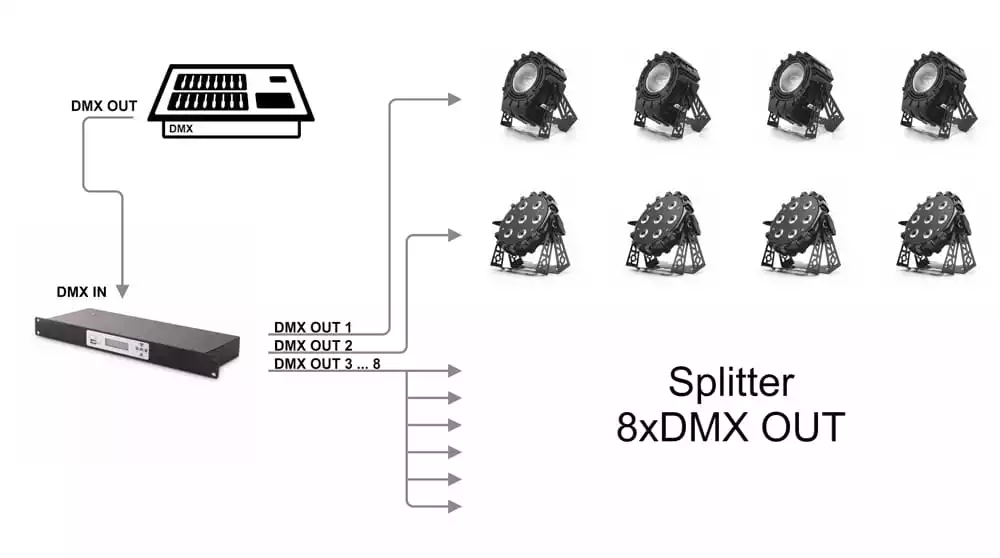

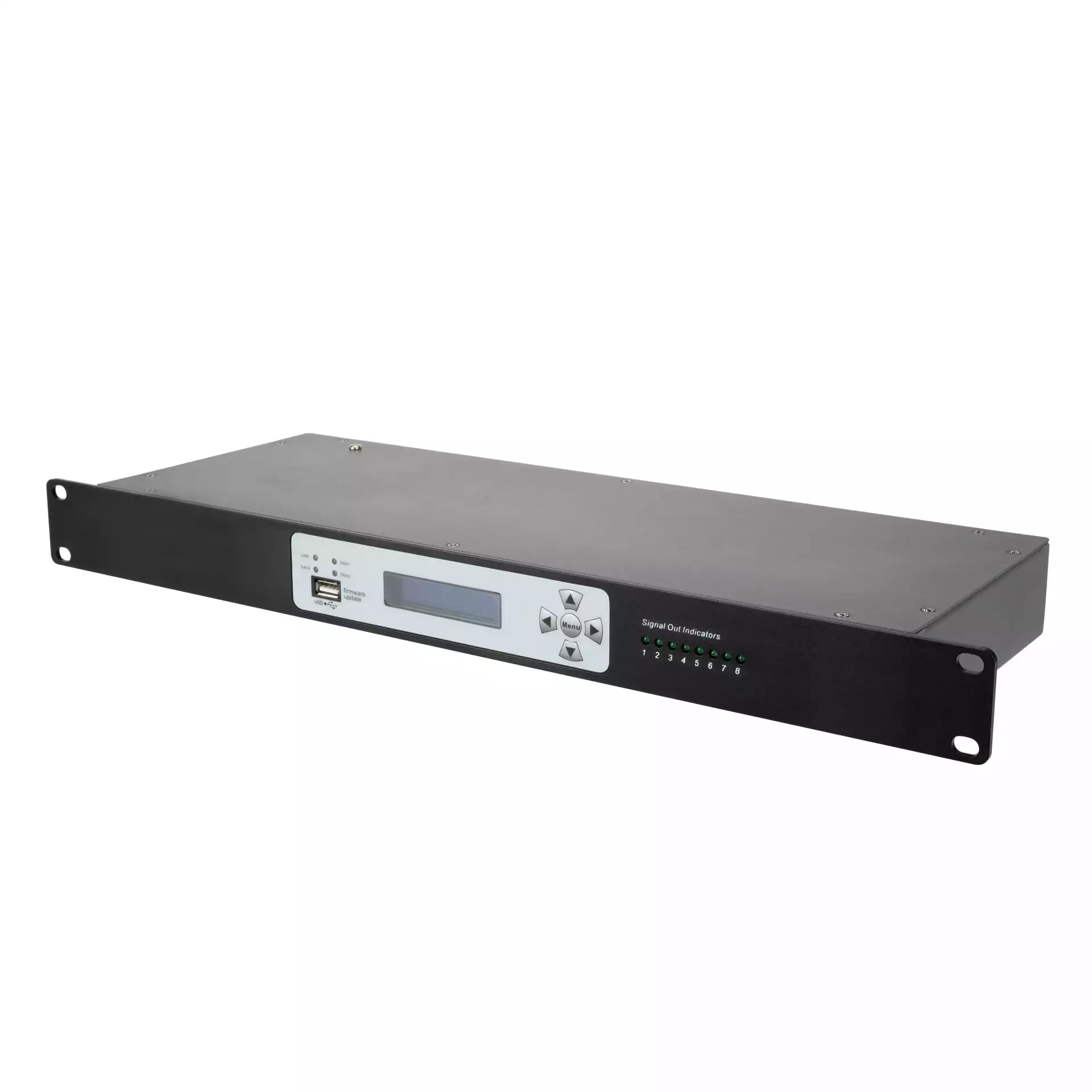

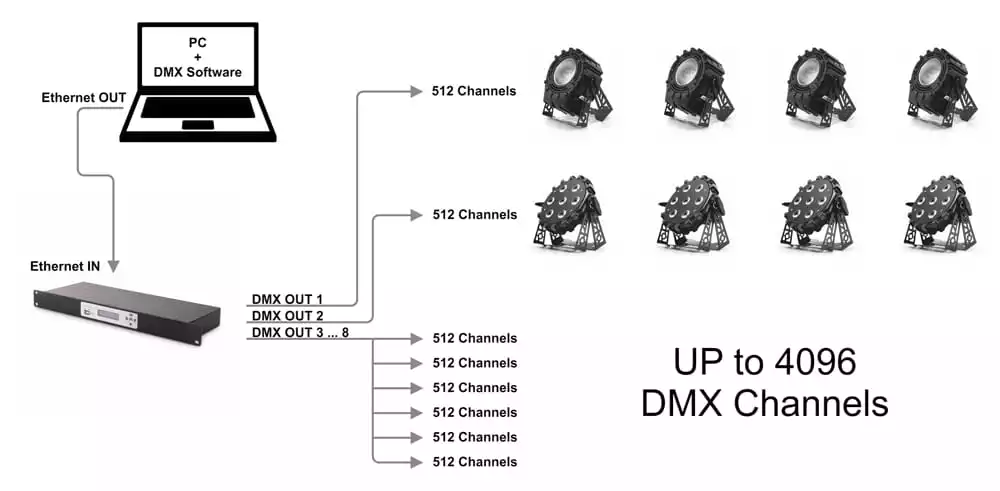

ARTNET/DMX GATEWAY 8×512 ch is a reliable, advanced and versatile device with an eight-port ArtNet gateway for DMX 8×512. Equipped with a DMX splitter function and an Art-Net hub, enabling the creation and configuration of DMX networks for the needs of large lighting installations. The 1U device has 8 galvanically isolated outputs, 2x DMX IN, Ethernet (RJ45) IN/THRU, USB Port, LCD display with an intuitive menu, and bright LEDs indicating the status of the output signal.

Varenummer (SKU): F9000381
Mærke: Flash EAN: 5903957728711 Kategori:

Specifikationer og beskrivelse

Power Source (AC)

Supply voltage 100-240V
Power consumption 6W
Power frequency 50-60Hz

Modes of operation

DMX512 Yes
Art-Net Yes

User Interface

Physical buttons Yes
LCD display Yes
USB connector Yes

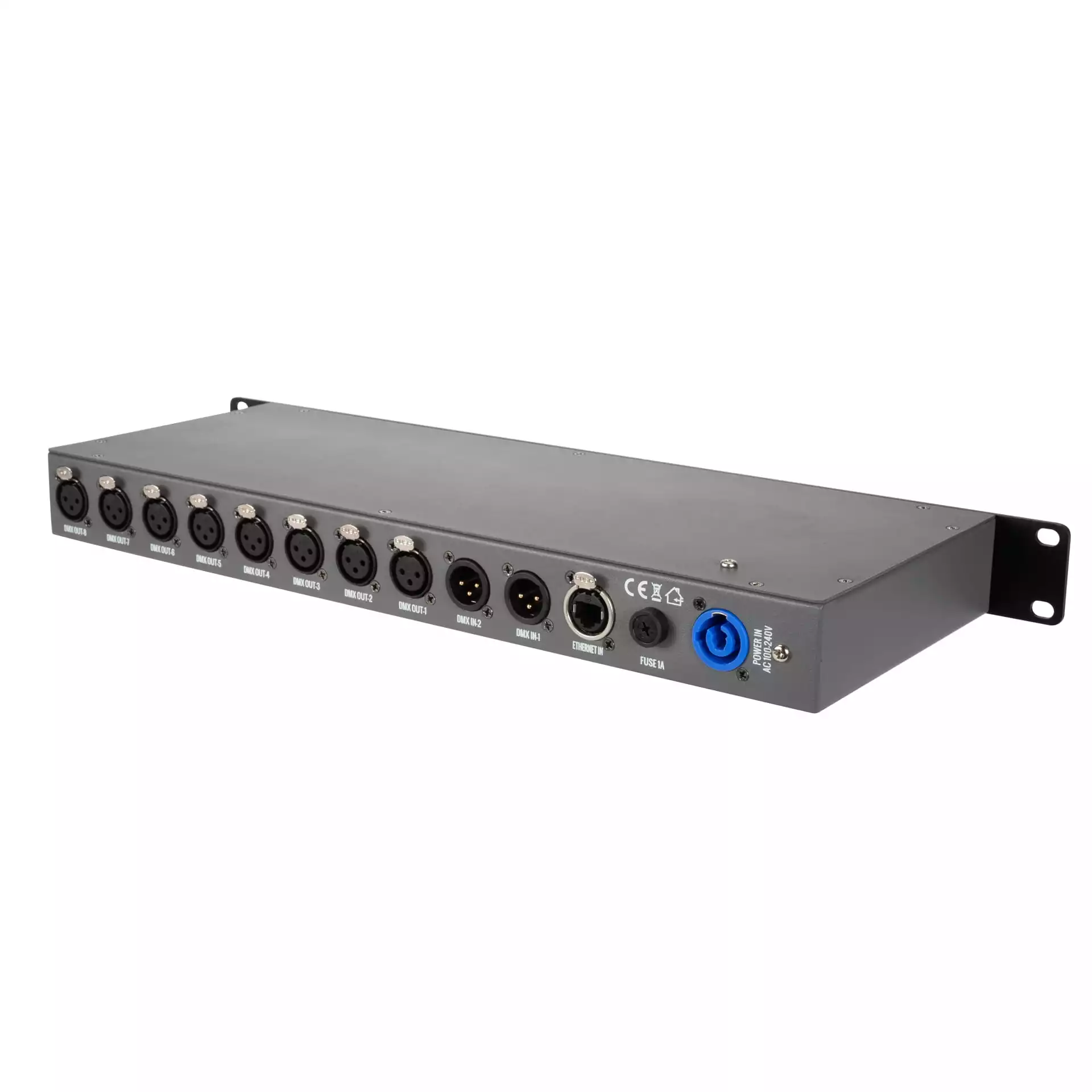

Connectors

AC IN IEC-C14
DMX IN 3-pin XLR
DMX OUT 3-pin XLR
ETHERNET IN RJ45
ETHERNET OUT RJ45

Physical parameters

IP protection level IP20
Housing type Steel
Housing type Aluminium
Fixing Mounting hole
Housing color Black
Cooling Active
Length [cm] 48
Width [cm] 17
Height [cm] 4,5
Weight [kg] 2,2

Contents of the package

A kind of package cardboard box
Manual Yes

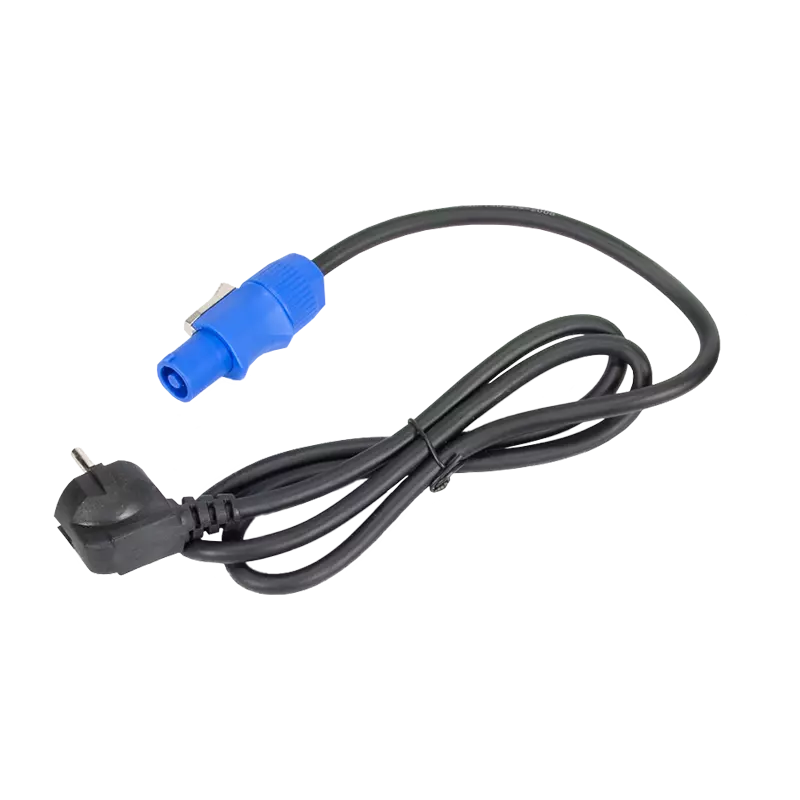

Wiring IEC-C13
Device ARTNET/DMX GATEWAY 8x512 ch
Handle Integrated
