Compact PA bass speaker, subwoofer, 150 W, 8 Ω

  • 20 cm (8″) bass speaker and subwoofer of high power capability
  • Heat-resistant voice coil and ventilated drive system
  • Extra long excursion for a deep bass reproduction of high volumes
  • Progressive cone suspension for a high operating reliability
  • Robust diecast aluminium basket
  • Ideally suited for 2-way systems and compact subwoofers
Varenummer (SKU): 100710
Mærke: Monacor EAN: 4007754207859 Kategori:

Specifikationer og beskrivelse

TEKNISKE DATA:
Impedance (Z) 8 Ω
Line technique -
Frequency range f3-3,000 Hz
Resonant frequency (fs) 56 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 150 W
Peak music power output 300 W
Sensitivity 93 dB
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.35 mm/N
Moving mass (Mms) 22.8 g
Mech. Q factor (Qms) 1.52
Electr. Q factor (Qes) 0.41
Total Q factor (Qts) 0.32
Equivalent volume (Vas) 22 l
DC resistance (Re) 7.2 Ω
Force factor (BxL) 11.96 Tm
Voice coil induct. (Le) 2.0 mH
Voice coil diameter Ø 50 mm
Voice coil former aluminium
Linear excursion (XMAX) ±6 mm
Eff. cone area (Sd) 213 cm2
Magnet weight 850 g
Magnet diameter Ø 120 mm
Mounting cutout Ø 185 mm
Mounting depth 90 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -

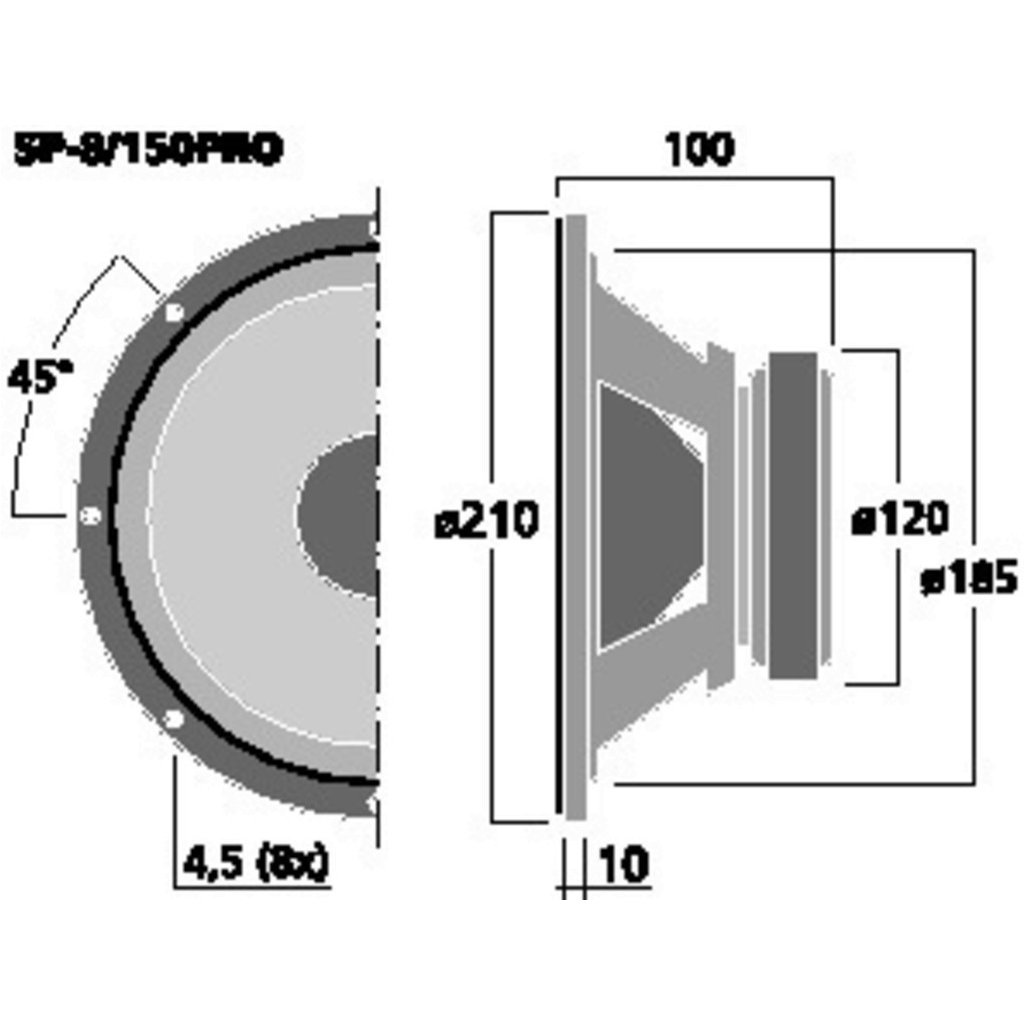

Dimensions Ø 210 mm x 100 mm
Outside diameter Ø 210 mm
Width Ø 210 mm
Height -
Depth 100 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 2.52 kg
Sales unit 1
Type of speaker
