Zonemixer PA-6040MPX | MONACOR | 4-kanals mixer med zoneregulering

0cb5954954
176e82ebbe

Zonemixer PA-6040MPX | MONACOR | 4-kanals mixer med zoneregulering

5.489,00 kr. Inkl. moms

Direkte fra fjernlager
2-4 dage
Z

Dansk Webshop

Z

14 dages fuld returret

Z

Nem betaling

Z

Professionel rådgivning

Mange betalingsmuligheder

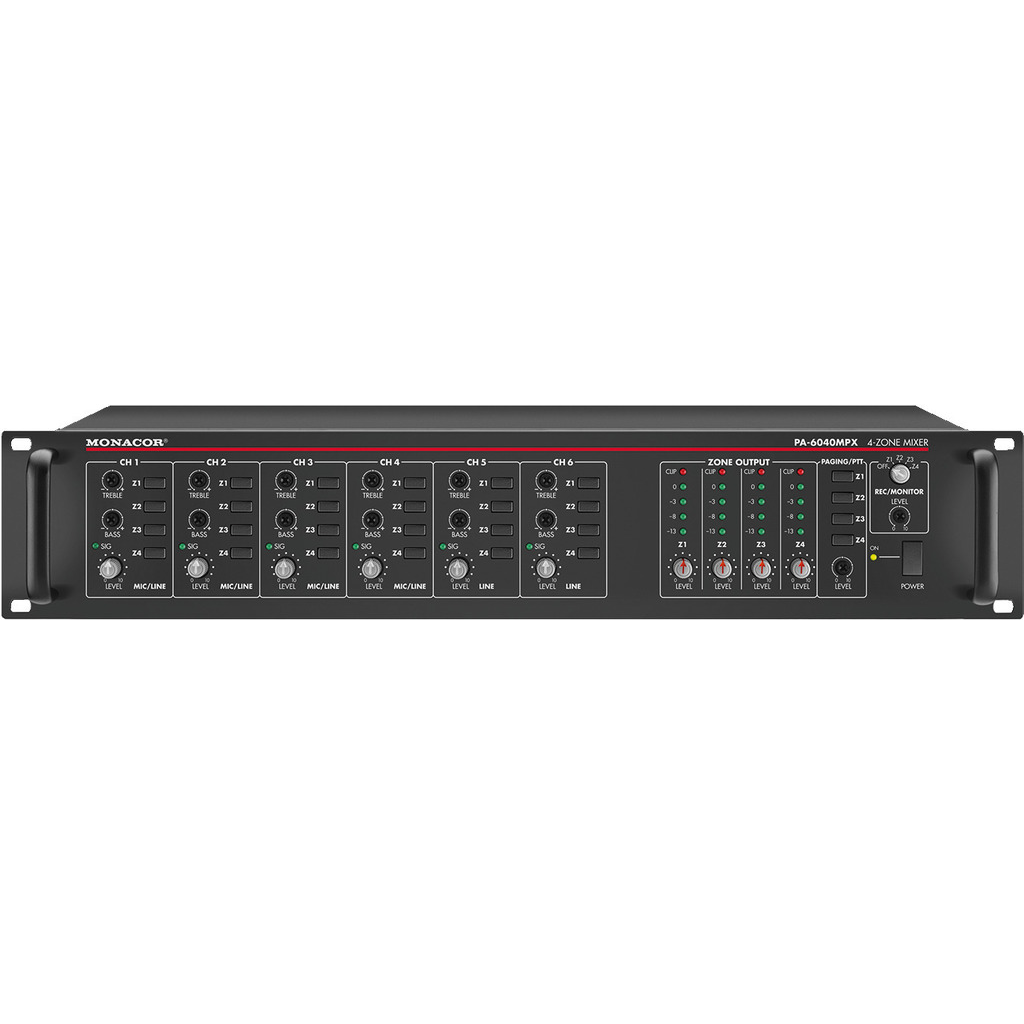

4-zone mixer, for general multi-room PA applications.

  • 4 zones with routing facility of all input channels as desired
  • 4 inputs microphone/line via comb. jacks
  • 2 inputs line stereo via RCA jacks
  • Each input channel with gain control, 2-way tone control and zone routing switch
  • Microphone inputs with phantom power, to be switched on as required
  • Independent paging input, can be routed to each zone
  • 4 zone outputs, can be adjusted individually
  • Monitor output and record output
  • Each microphone/line input with connection for external chime button, 2-tone chime or 4-tone chime, siren (selectable)
  • Connection for push-to-talk microphone PA-4000PTT
  • Level control via zone VU meter
  • Mains operation or 24 V emergency power operation
Varenummer (SKU): 174760
Mærke: Monacor EAN: 4007754245615 Kategori:

Specifikationer og beskrivelse

Channels 6
Zones 4
Power rating -
Power rating at 2 Ω -
Power rating at 4 Ω -
Power rating at 8 Ω -
Power rating at 100 V -
Power rating with 4 Ω bridged operation -
Power rating with 8 Ω bridged operation -
Peak music power output (PMAX) -
Output impedance
Inputs 2.5 mV/5 kΩ, bal., 250 mV/15 kΩ, bal. (mic/line),
250 mV/15 kΩ (line),
250 mV/10 kΩ (telephone paging)
Dampening factor
Frequency range 20-20,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ±10 dB/100 Hz
Equalizer treble ±10 dB/10 kHz
S/N ratio > 65 dB (mic),
> 87 dB (line)
THD < 1 %
Power supply ˜ 230 V/50 Hz/15 VA,
DC current  24 V/500 mA
Mains voltage ˜ 230 V
Mains frequency 50 Hz
Power consumption, operation 15 VA
Power consumption, standby -
Standby current -
Alternative operating voltage DC current  24 V
Alternative power supply DC current  500 mA
Admiss. ambient temp. 0-40 °C
Dimensions 482x90x305 mm, 2 RS
Width 482 mm
Height 90 mm
Depth 305 mm
Rack spaces, RS 2
Weight 4.4 kg

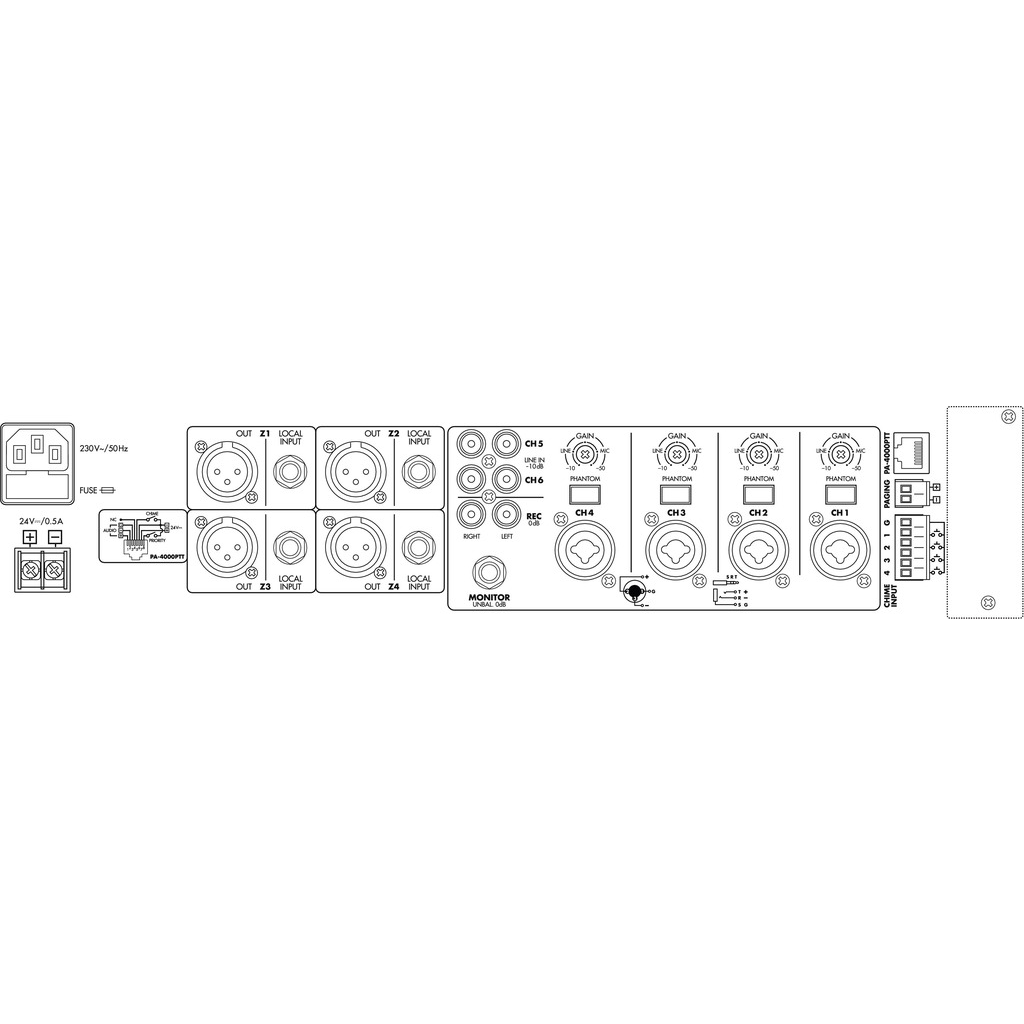

Connections 4 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),
4 x 6.3 mm jack (zone inputs),
plug-in screw terminal (paging),
plug-in screw terminal (chime button),
1 x RJ45 (push-to-talk mic),
4 x XLR (zone outputs),
1 x 6.3 mm jack (monitor),
1 x RCA L/R (record)
